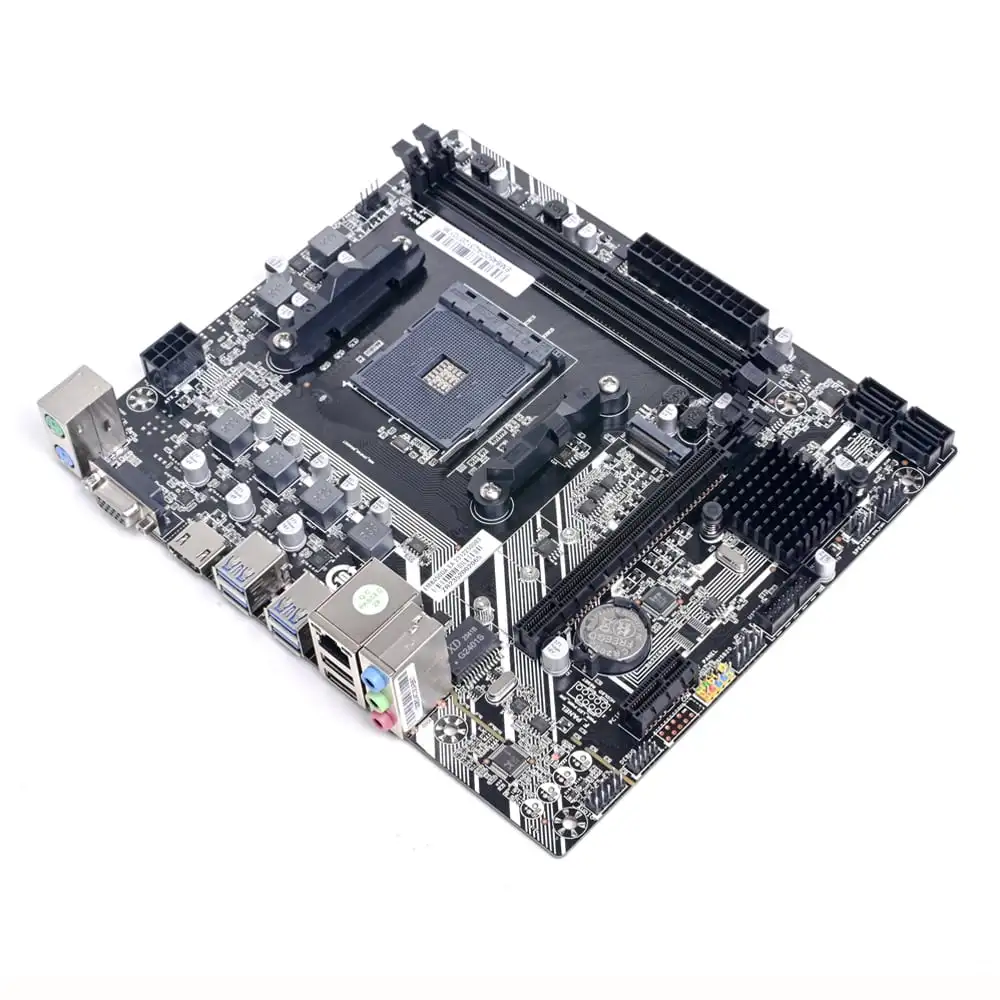

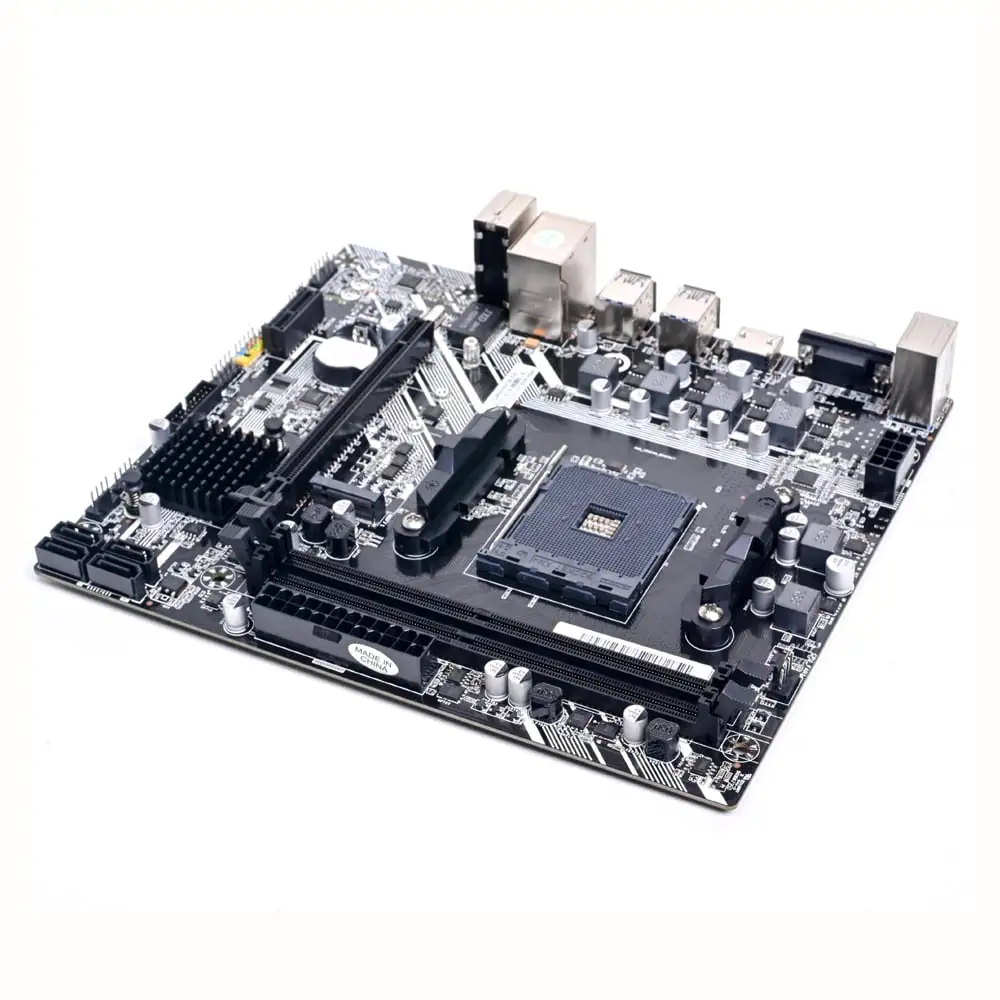

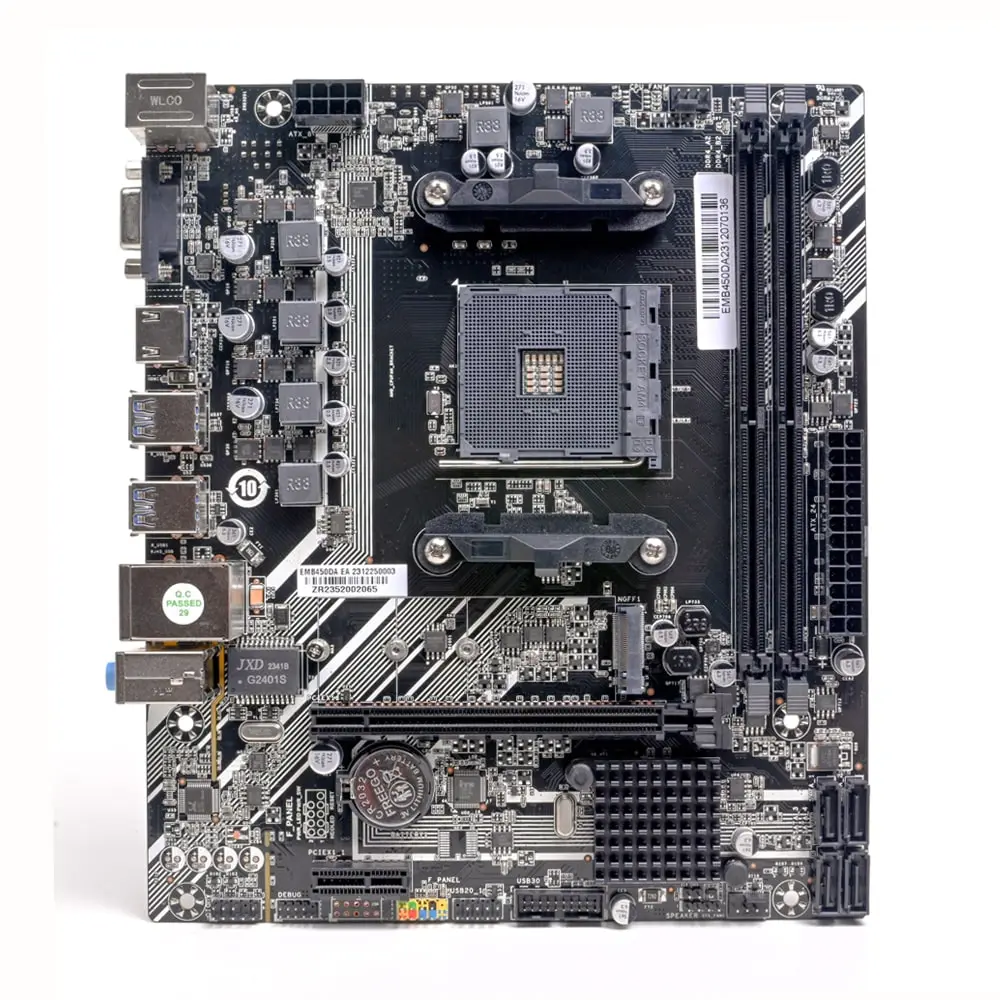

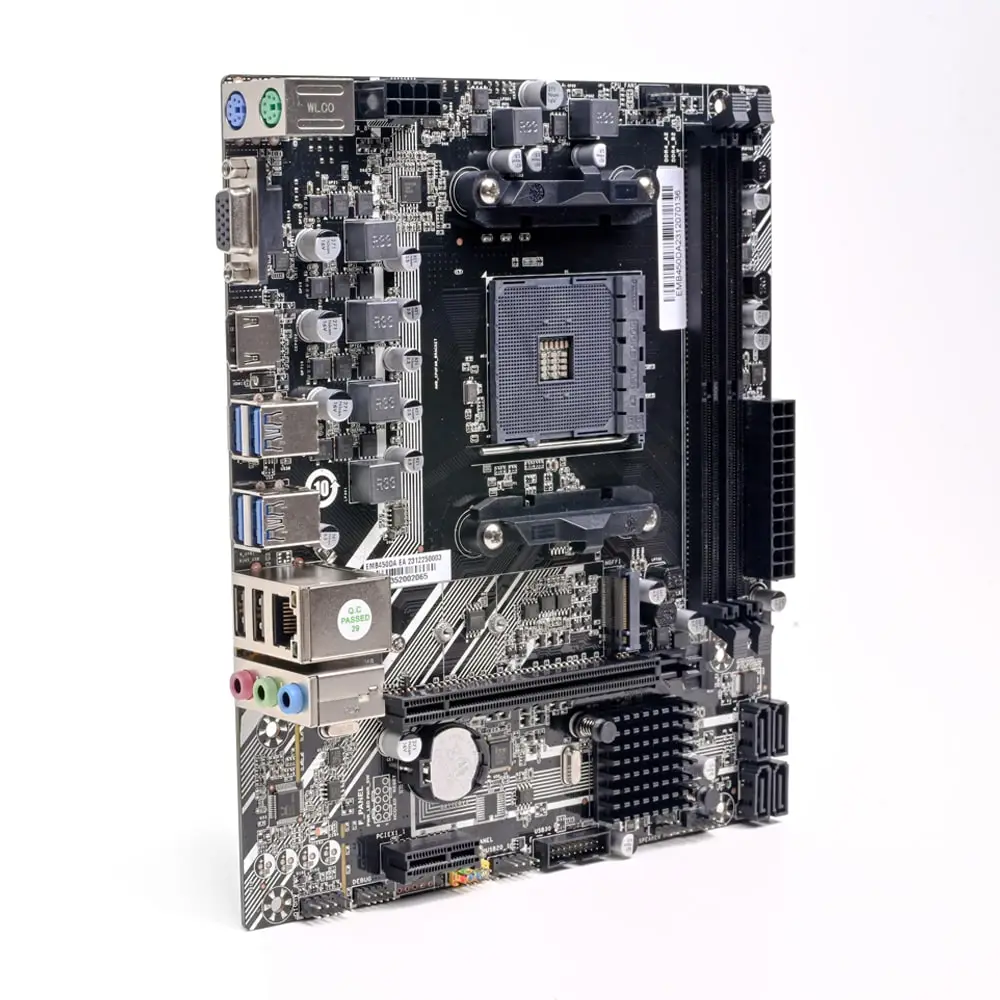

EASE EMB450DA AM4 DDR4 Motherboard
₨ 23,000
Chipset: AMD B450
Socket: Support AM4 CPU
Memory: 2*DDR4 2133/2400/2666MHZ
VGA: Support Integrated Graphics
LAN: 10/100/1000M Ethernet
Audio: 5.1HD Audio codec
EASE EMB450DA AM4 DDR4 Motherboard
EMB450DA – The Best Choice
- Support 1*RTL8111H 10/100/1000MBPs
- Support AMD Socket AM4 LGA1331
- Supports 2*DDR4 DIMM Max 64 GB
- Support 4*SATA 3.0 Ports 6GB/s
- 4*USB 3.0 Ports
Memory Slots
2*DDR4 2133/2400/2666MHZ
Slot Signal Stability
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Slots
- 1 * M2 SSD
- 4 * SATA 3.0 Ports SSD Up To 6GB/s
Fast Onboard Storage with NVMe PCIe M.2 (2280 NVMe)
EASE M.2 solution offers considerably faster storage performance and support for PCIe and SATA interfaces* for M.2 SSD devices.

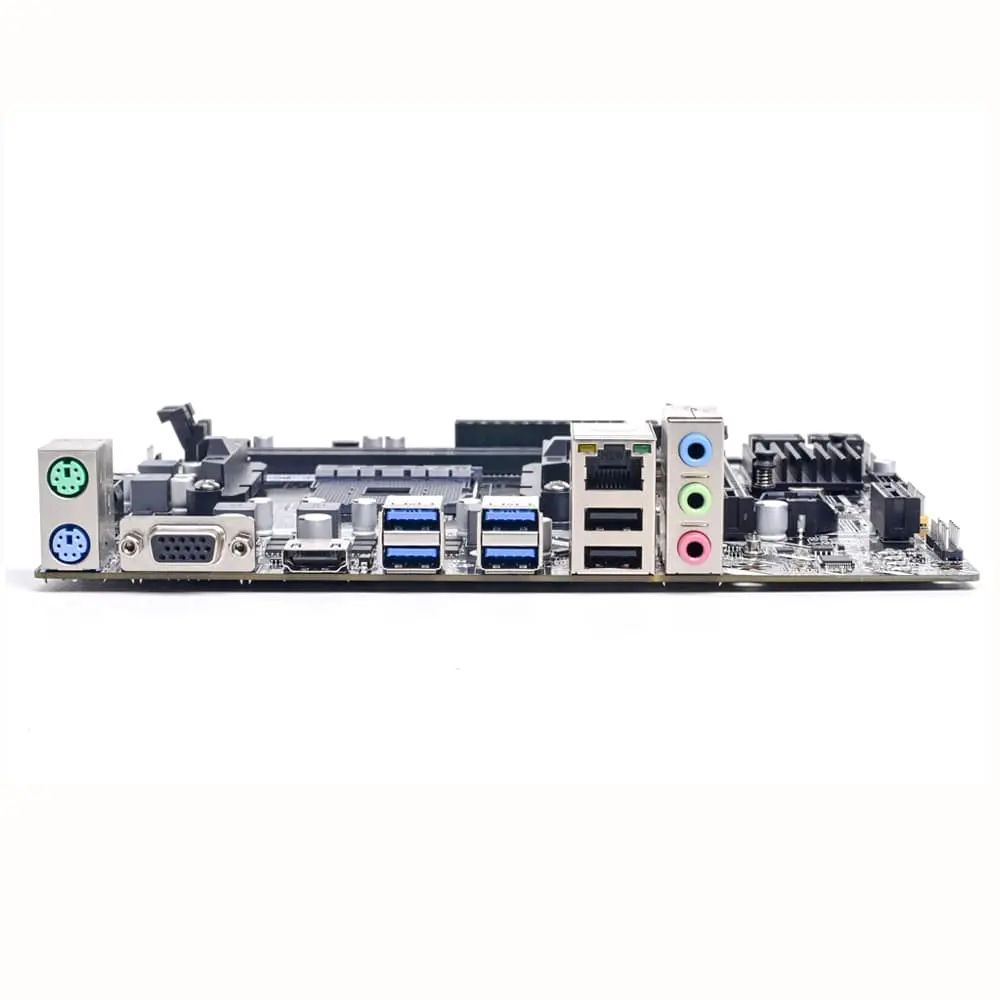

Back Panel
| Brand | EASE |
|---|
| Specifications | |
| Brand | Ease |
| Model | EMB450DA |
| Processor Support | Support AMD 7th APU A8/A10/A12 Series/ Support Athlon 200GE And Ryzen 1000/2000/3000/4000/5000 series CPU Support AMD AM4 Socket 1331 CPU |
| Chipset | AMD B450 Chipset |
| Memory Support | 2 x DDR4 DIMM Slot, Support DDR4 2400/2666/2800/3200MHZ Max to 64GB |
| LAN | Onboard Realtek® 8111H 1000Mbps LAN |
| Audio | Realtek 6 Channel HD Audio |
| SATA | 4 SATA 3.0, Support AHCI |
| USB | 6* USB 3.0 Ports(4 On the rear panel, 2 onboard pins) |
| 4* USB 2.0 Ports(2 On the rear panel, 2 onboard pins) | |
| Back Panel | 1 x Ps2 Keyboard & Mouse Port |
| 1 x VGA Port | |
| 1 x HDMI Port | |
| 4 x USB3.0 Ports | |
| 2 x USB 2.0 Ports | |
| 1 x RJ45 Port | |
| 1 Audio Jacks(Line in/ Line Out/ Mic in) | |
| On-Board Pinheaders/Connectors | 1 x USB 3.0 Pinheader |
| 1 x USB 2.0 Pinheader | |
| 1 x Front-Panel Audio Pin header | |
| 1 x Front-Panel Pinheader | |
| 1 x Fan Connector | |
| 1 x 24-Pin ATX Power Connector | |
| 1 x 8-Pin ATX | |
| 1 x CLR_COM Pinheader | |
| 1 x SPEAK Pinheader | |
| Slots | 1 x PCI Express x 16 Slot |
| 1 x PCI Express x 1 Slot | |
| 1 x M.2 SSD Slot(Support 2242/2280 SATA/NVME) | |
| Form Factor | Micro-ATX(21.5m x 18.5 cm),6 mounting holes |
| Acessories (Optional) | 1X 4-pin SATA data cable |
| 1X I/O Backboard | |
| 1X User Manual | |
| 1X Drives intalled CD | |
