Description
EASE EMB610DA DDR4 LGA1700 Motherboard
EMB610DA – The Best Choice
- Solid Pin Power Connector
- 6+1+1 Phase Hybrid Power Design
- Support 12th / 13th Gen Intel@ Core Processors
- Supports 2*DDR4 UDIMM Slot
- Support 3*SATA 3.0 Ports
6+1+1 Phase Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 6+1+1 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
Memory Slots
Support 2*DDR4 UDIMM Slot 3200MHz, up to 64GB
Slot Signal Stability
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
EASE LAN with Bandwidth Management
| Brand | EASE |
|---|
| Brand | Ease |
| Model | EB760B |
| Processor | Support for 12/13th/14th Gen Intel®Core™ i9/i7/i5/i3 processors in the LGA1700 Package. |
| Chipset | Intel® B760 Chipset |
| Memory | 2*DDR5 UDIMM slot 4800MHz MAX 64GB |
| LAN | Realtek® RTL8125B 2500Mbps Optional Realtek® RTL8111H 1000Mbps |
| Audio | support Realtek® ALC662 High Definition Audio Optional Realtek® ALC897 High Definition Audio |
| Storage Interface | 4 SATA 3.0 |
| 2*M.2_SSD port（support2242/2280) support NVMe signal | |

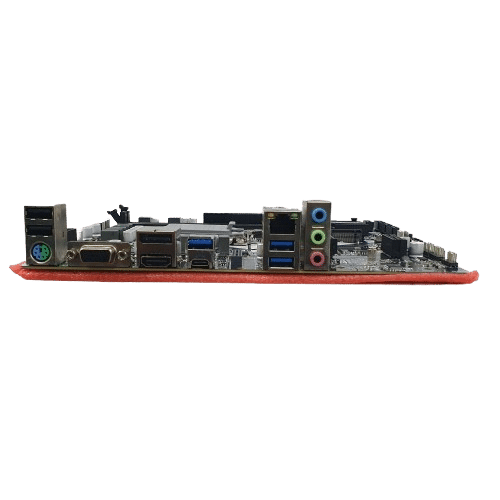

| Back Panel I/O | 1* PS/2+2*USB2.0 port |
| 1* VGA port colay HDMI port | |
| 1* USB3.2 Gen2 port | |
| 2* USB3.2 Gen1 port | |
| 1* AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN) | |
| 1* RJ45 port | |
| 1* M.2_WIFI 1* HDMI+DP port 1* TYPE_C port | |
| On-Board Connectors | 1* F_AUDIO connector ∟support 2*USB3.0 port 1* ESPI connector |
| 1* COM connector 3* F_USB2.0 connector ∟support 3*USB2.0 port 1* F_USB3.0 connector | |
| 1* TPM connector 1* ATX_24P connector 1* ATX_8P connector | |
| 1* CLR_CMOS connector | |
| Slots | 1* PCIe 4.0/5.0 X16 slot 1* PCIe 3.0 X1 slot |
| 1* M.2_WIFI support CNVi | |
| Form Factor | Micro-ATX(19cm x 23cm) |
