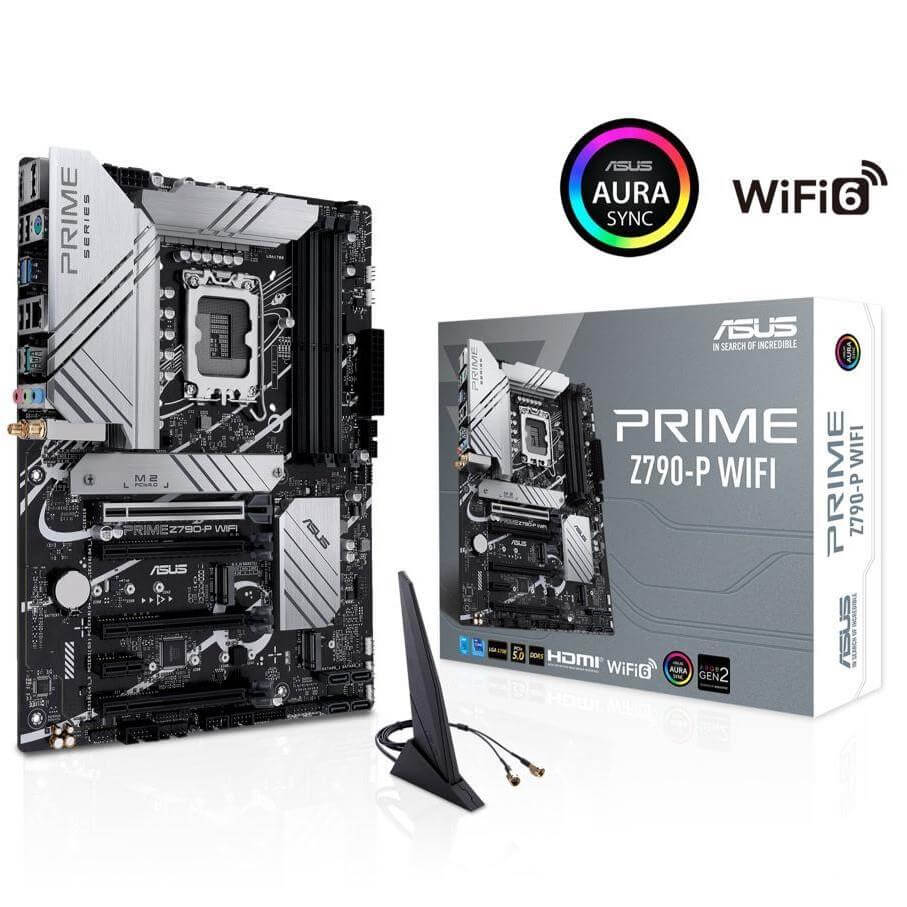

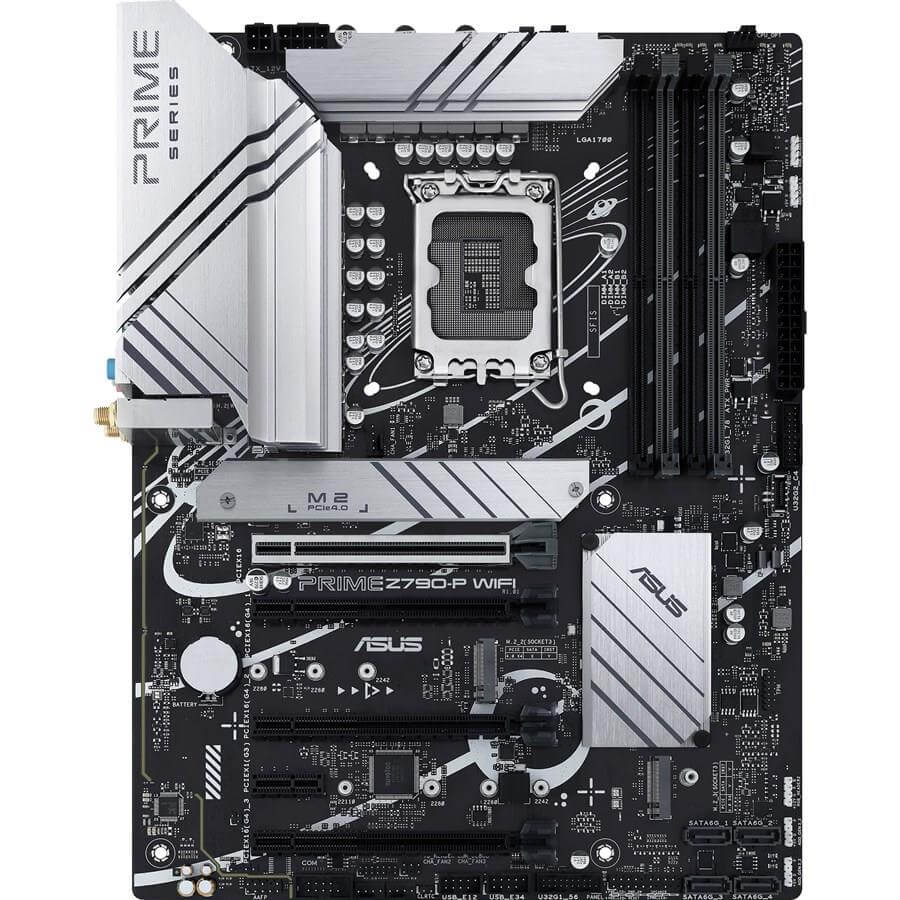

ASUS PRIME Z790-P-CSM 13th Gen LGA 1700 Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14^th Gen Intel^® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

ASUS PRIME Z790-P-CSM 13th Gen LGA 1700 Motherboard

Chipset	Intel Z790
CPU Socket	LGA 1700

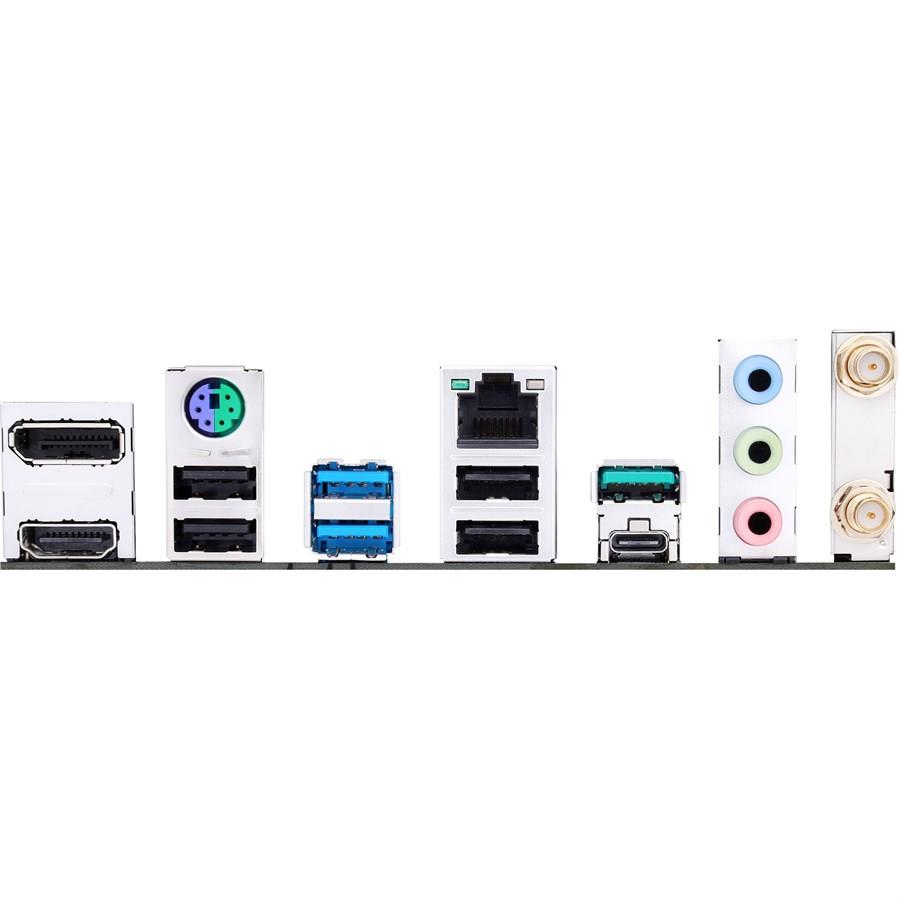

Back Panel I/O

USB	1 x USB-C (USB 3.2 Gen 2×2) 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 2.0)
Thunderbolt	None
Display	1 x DisplayPort 1 x HDMI
Audio	3 x 1/8″ / 3.5 mm
Ethernet / Controller	1 x Realtek 2.5Gigabit
PS/2	1 x Combo
Wi-Fi Antenna	2 x Connector

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4 x SATA III
M.2	2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1
USB	1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2 x 4-Pin CPU 3 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU
Security	TPM Header
LED Header	4 x RGB
Audio	1 x S/PDIF
Diagnostics	Clear CMOS
Add-On	1 x Thunderbolt Header
Legacy	1 x Serial
